DHJBJ-120-4 Plastic Cup Curling Machine

  • Category:Curling Machine
  • Views:4322次
  • Release date:2026/5/11 14:50:23
  • Description
  • Parameter

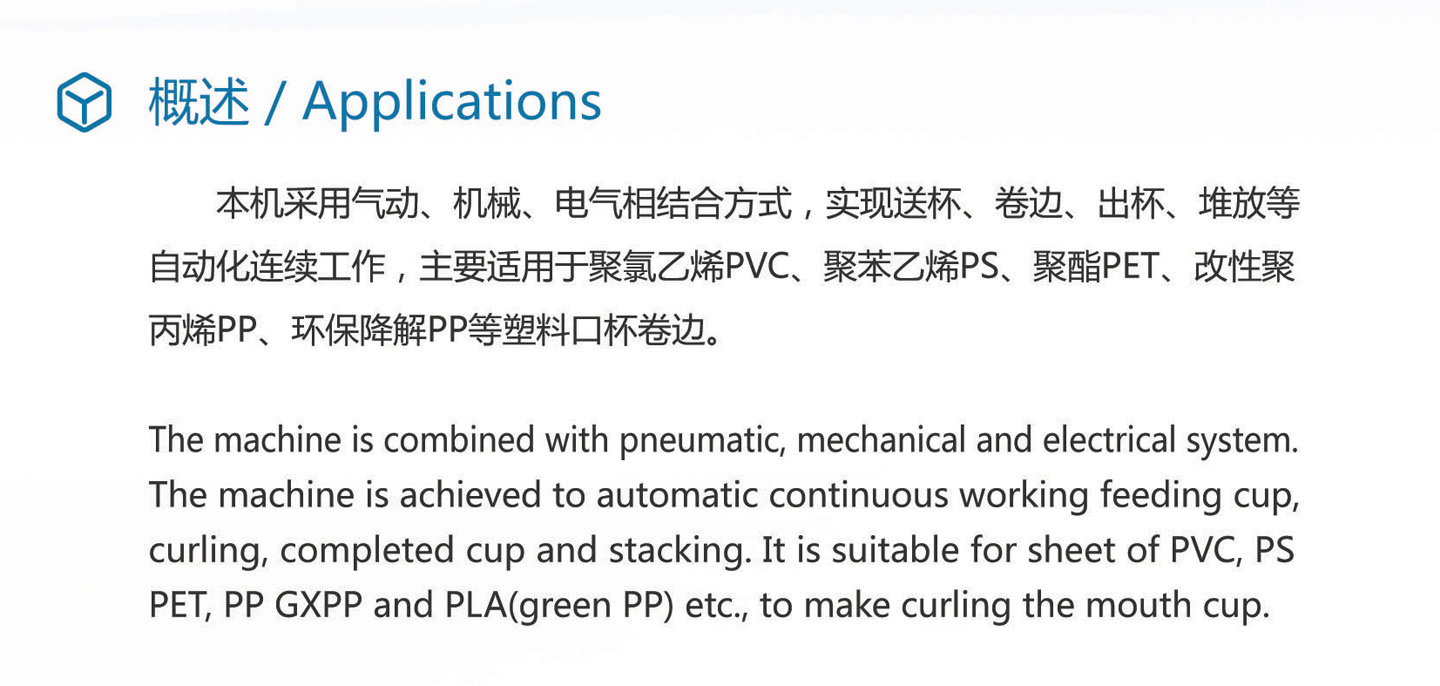

概述/ Applications

本机采用气动、机械、电气相结合方式,实现送杯、卷边、出杯、堆放等自动化连续工作,主要适用于聚氯乙烯PVC、聚苯乙烯PS、聚酯PET、改性聚丙烯PP、环保降解PP等塑料口杯卷边。

The machine is combined with pneumatic, mechanical and electrical system.The machine is achieved to automatic continuous working feeding cup,curling, completed cup and stacking. It is suitable for sheet of PVC, PSPET, PP GXPP and PLA(green PP) etc., to make curling the mouth cup.

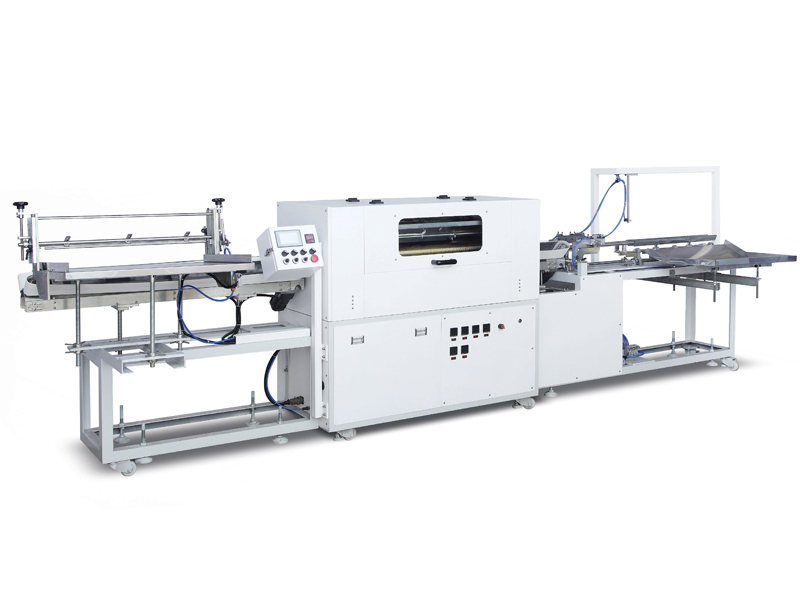

DHJBJ-120-4 Plastic Cup Curling Machine

DHJBJ-120-4 Plastic Cup Curling Machine

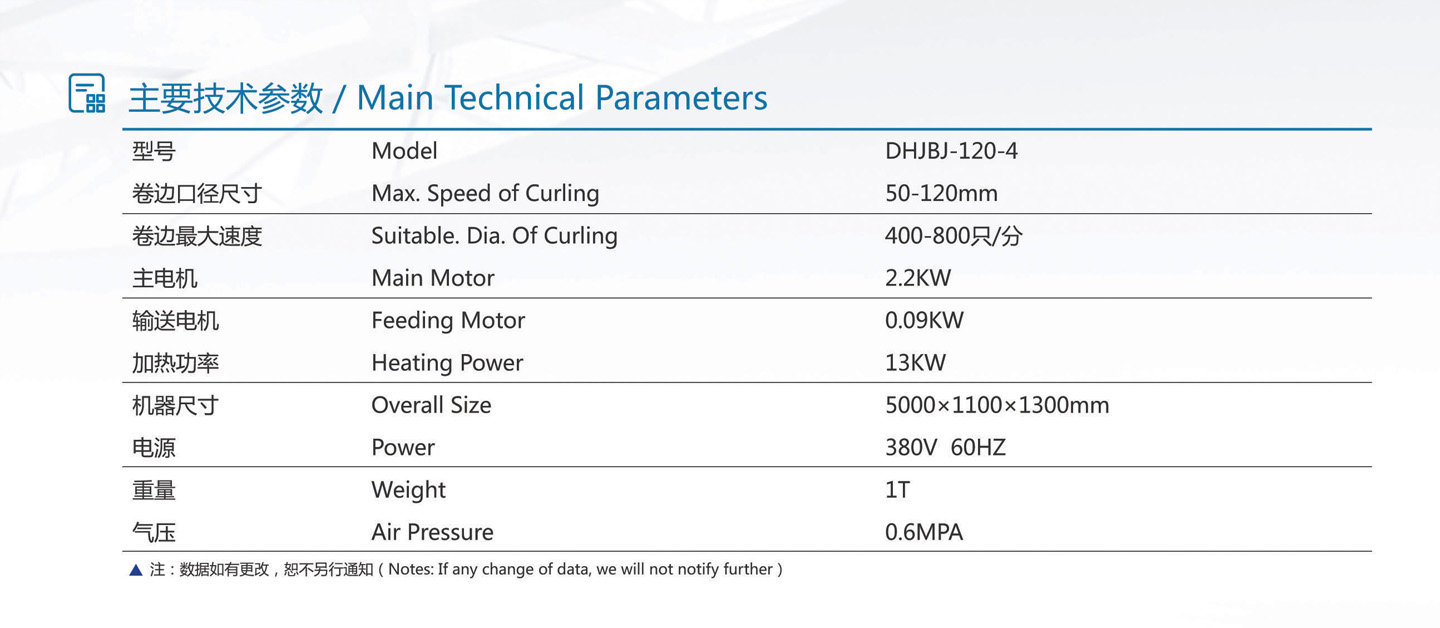

主要技术参数/ Main Technical Parameters

型号

Model

DHJBJ-120-4

卷边口径尺寸

Max. Speed of Curling

50-120mm

卷边最大速度

Suitable. Dia. Of Curling

400-800只/分

主电机

Main Motor

2.2KW

输送电机

Feeding Motor

0.09KW

加热功率

Heating Power

13KW

机器尺寸

Overall Size

5000×1100×1300mm

电源

Power

380V 60HZ

重量

Weight

1T

气压

Air Pressure

0.6MPA

:数据如有更改,恕不另行通知( Notes: If any change of data, we will not notify further)
